Case Study: enclosure for a gas-mixing-system
Manufacturing Processes
- Die Casting
- Gravity Die Casting
- Low Pressure Die Casting
- CNC ProcessingSand Casting
- Injection Molding
- Plastic Extrusion
- Thermoforming
Cross-Process Services
- CAD Drawing Service: design according to specifications
- Prototyping: Rapid Prototyping, PROTO DIE, Proto Deep Drawing, CNC processing
- Continuous Sealing: Enclosures secure placement, specially designed for industrial applications

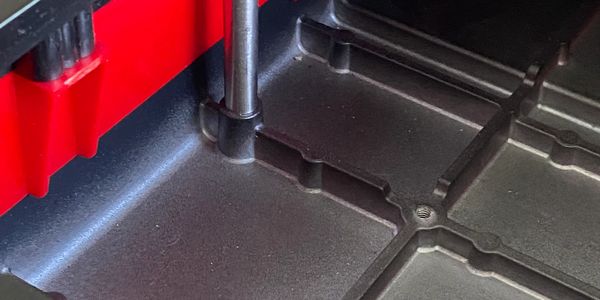

- Threaded Bushings: Integrated for display unit installation and other functional elements

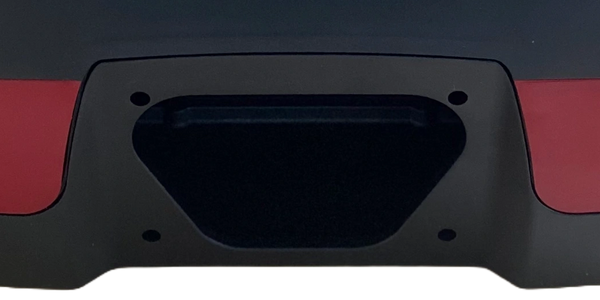

- Finish: polished surface in visible area; fine-structure aluminum powder coating; EDM surface finish 36; deep engraved branding
Data
- No. parts: 6
- Material: A383/ADC12; PC/ABS, stainless steel
- Dimensions: 31.2 x 12.5 x 5.9 in
Delivery time / conditions
- Engineering: 10 weeks
- Prototyping: 5 weeks
- Mold production: 12 weeks
